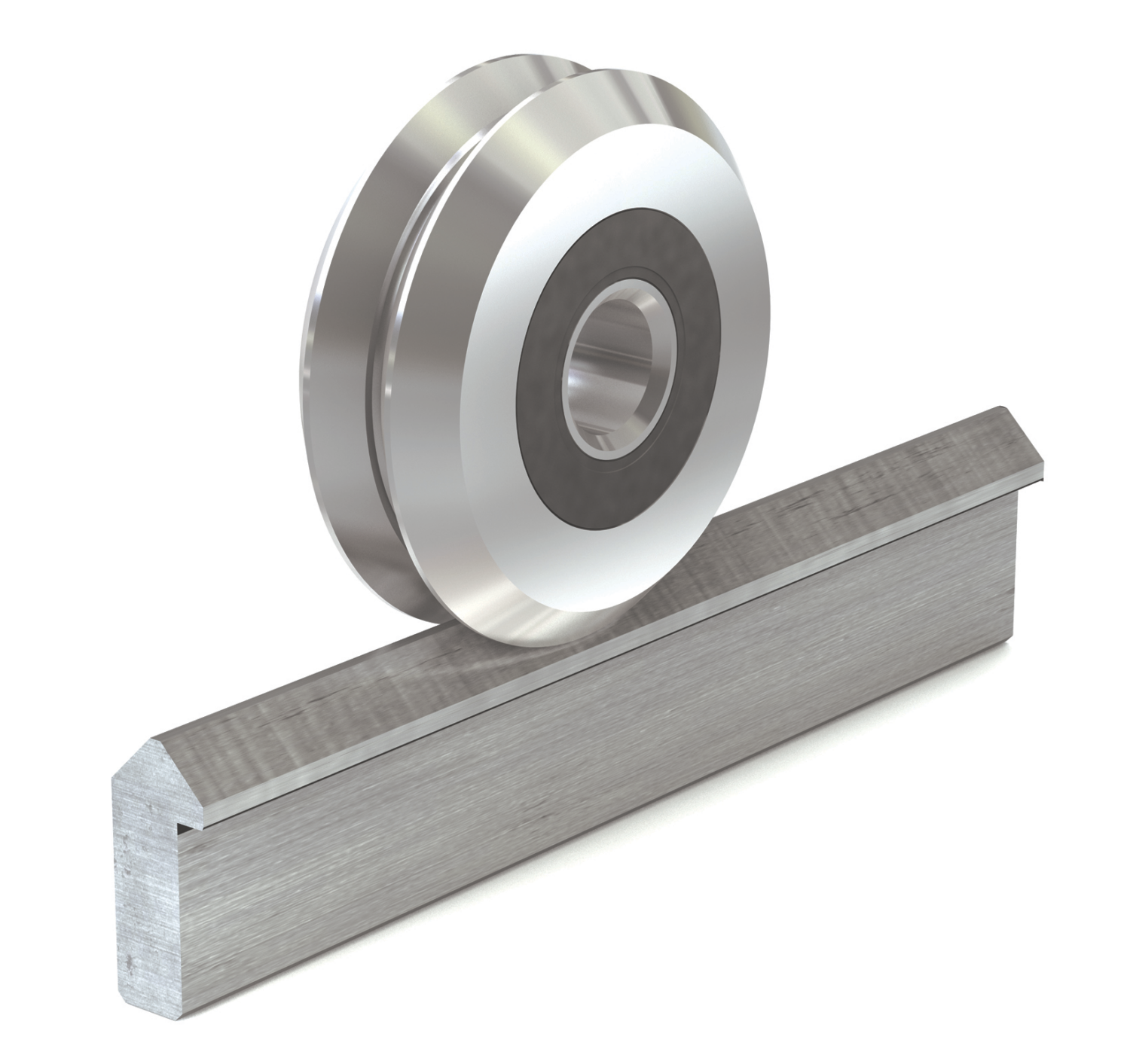

LinTrek
The LinTrek guide system from Technische Antriebselemente GmbH offers high radial and axial load capacity with the highest precision. It enables lubrication-free operation and is suitable for high feed rates in demanding industrial applications.
- High radial and axial load capacity
- High precision
- Lubrication-free operation possible
- High feed rates
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Axial Load (static) | up to 6,950 N |
| Axial Load (dynamic) | up to 6,160 N |
| Radial Load (static) | up to 9,700 N |
| Radial Load (dynamic) | up to 11,080 N |
| Max. Length | 4,000 mm |
| Material | Steel / Stainless Steel |
| Lubrication | grease-free possible |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
