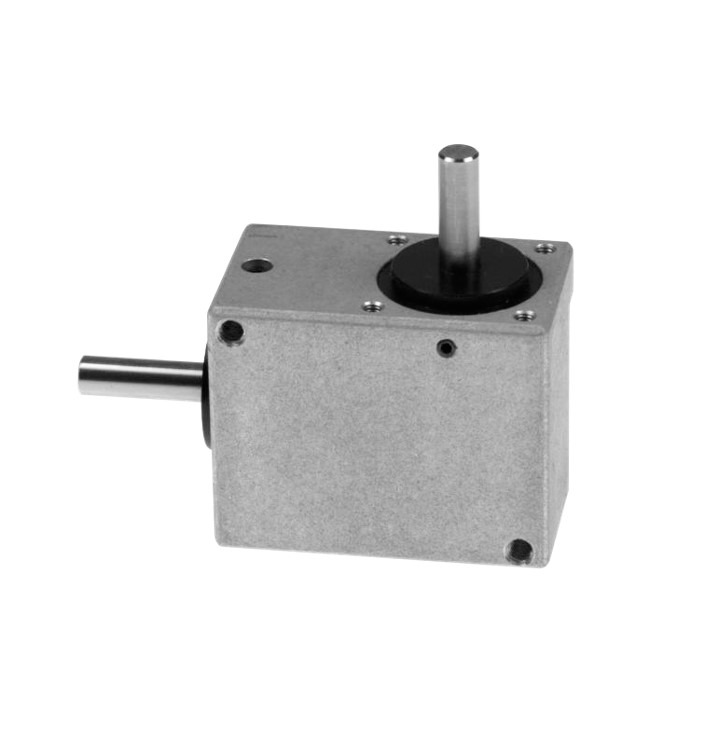

Compact Bevel Gearboxes
Bevel gearboxes transmit rotary motion efficiently along right-angle axes, achieving excellent efficiency in power transmission. These compact bevel gearboxes are characterized by their suitability for light to medium-duty applications in general mechanical engineering. They offer an efficient solution for requirements where compactness, reliability, and ease of maintenance are paramount.
- Lightweight design for flexible use
- Lifetime lubricated with fluid grease for minimal maintenance
- Suitable for speeds up to 1,000 min⁻¹.
- Robust construction for lasting reliability
- Easy installation through versatile mounting options
- Ideal for general machine and fixture building.
Response within 48h (Mon – Fri)
Volume discounts & freight cost coverage for annual orders on request.
Technical Overview
| Gear Ratios | 1:1, 2:1 |
| Max. Output Torque | 38 Nm |
| Speeds | up to 1,000 rpm |
| Housing | Aluminium, anodised |
| Shafts | Stainless Steel |
| Gears | Brass |
| Lubrication | Lifetime lubrication (grease) |
These are basic values. Detailed technical information and diagrams can be found in the PDF catalogue.
