Actuators with push rod
Actuators with push rod are units consisting of a permanently mounted gearmotor and a driven, rotating screw. The screw nut is designed as a push rod and runs inside of the push tube. The push rod and push tube cover the screw and protect it from environmental influences and loss of lubricant. The push tube provides space for the installation or mounting of limit switches. The linear actuators can be controlled by installing encoders or potentiometers. DC motors, AC motors or servo drives are used as actuators. The actuators HG25 – HG36 as well as the series HGAL/HGAP already have integrated drives. Combinations of linear actuators with servo motors and stepper motors are also available. In addition, some of the actuators are also suitable for mounting the customer’s own motors.
Actuators With Encoders

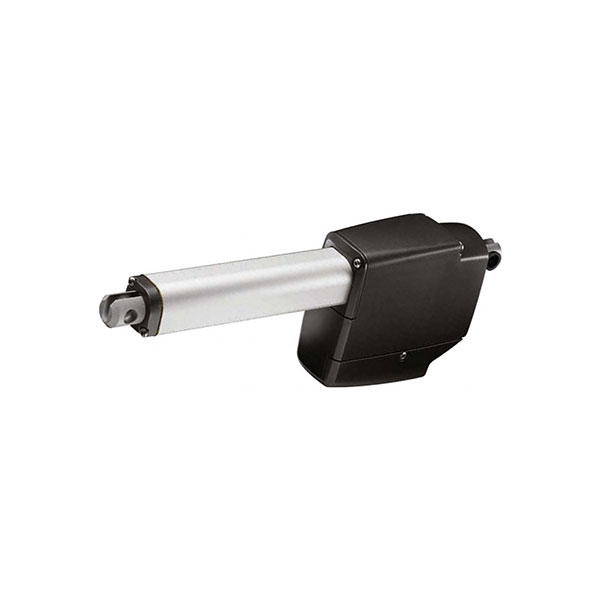

Linear Actuator HG25
- Force up to 2.500 N
- Feed up to 20 mm/s
- IP66 (opt. IP67/69K)
- Encoder integrated

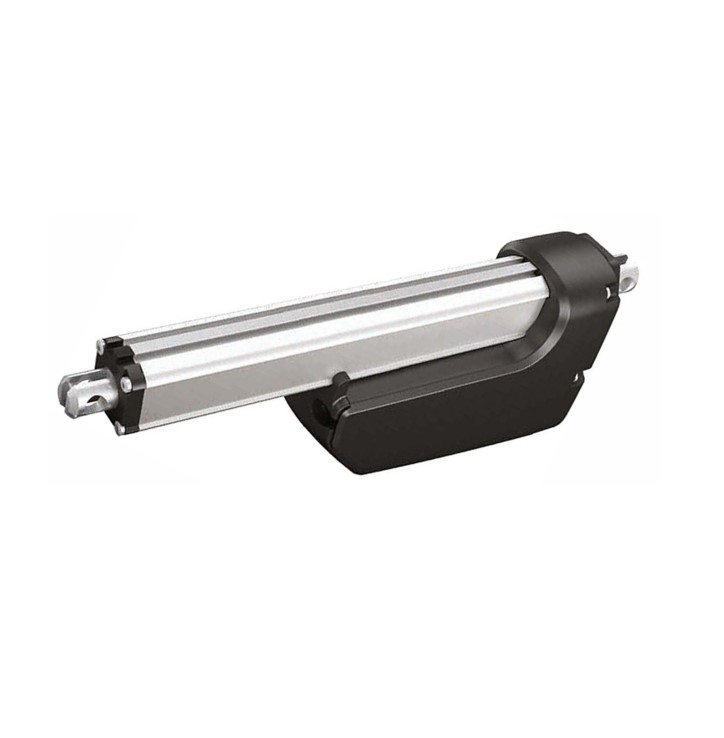

Linear Actuator HG33
- Last bis 5.000 N
- Feed up to 35 mm/s
- IP66 (opt. IP67/69K)
- Encoder integrated

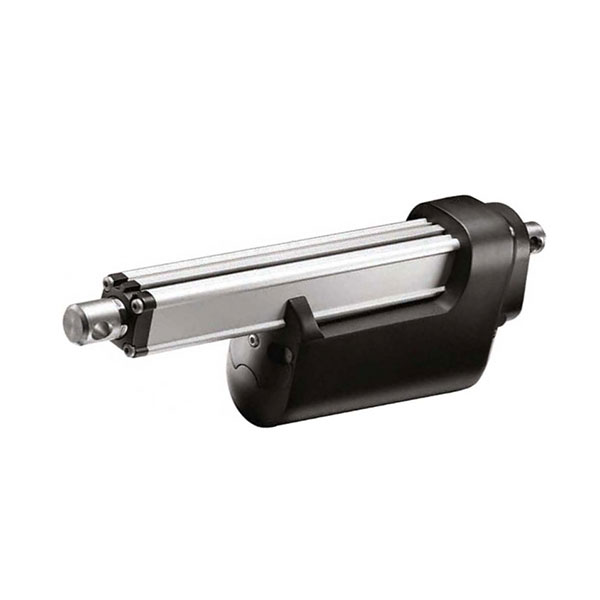

Linear Actuator HG36
- Last bis 6.800 N
- Feed up to 168 mm/s
- IP66 (opt. IP67/69K)
- Encoder integrated
Actuators With Limit Switches and Encoders
Precision control: Integrated limit switches for precise movement control.

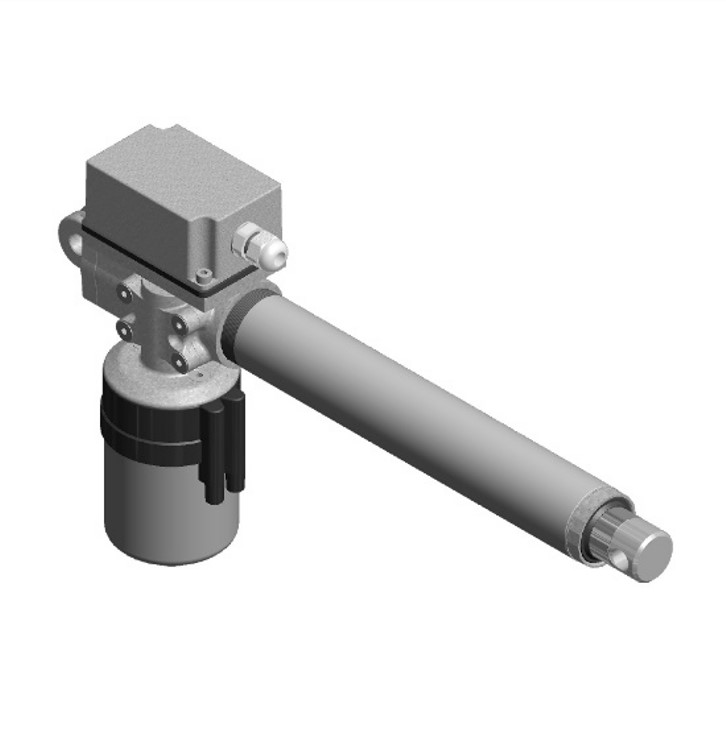

Linearaktuator HGAL-2F
- Force up to 2.500 N
- Feed up to 40 mm/s
- IP65
- Limit switches, encoder integrated

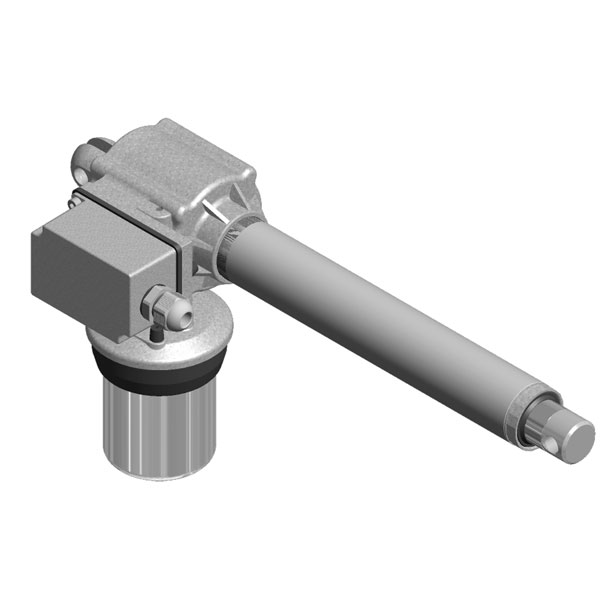

Linearaktuator HGAL-3F
- Force up to 6.000 N
- Feed up to 20 mm/s
- IP65
- Limit switches, encoder integrated

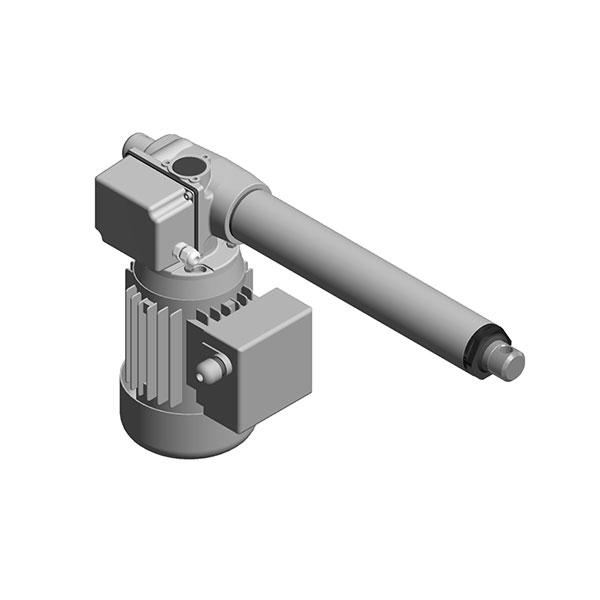

Linearaktuator HGAL-4F
- Force up to 10.000 N
- Feed up to 50 mm/s
- IP65
- Limit switches, encoder integrated

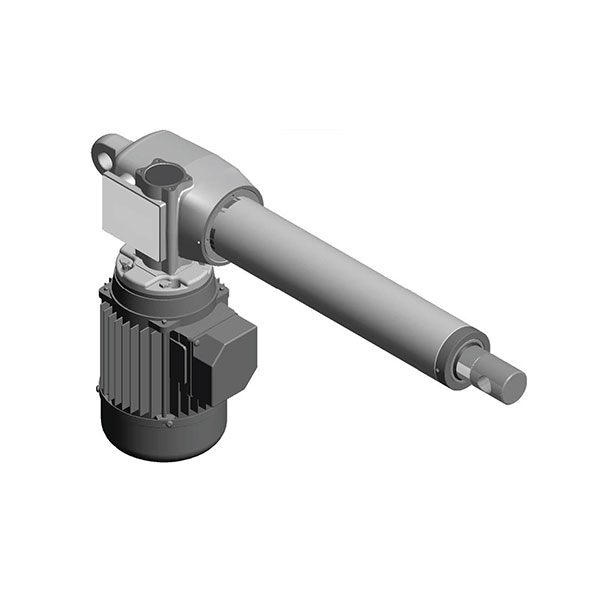

Linearaktuator HGAL-5F
- Force up to 18.000 N
- Feed up to 23 mm/s
- IP65
- Limit switches, encoder integrated

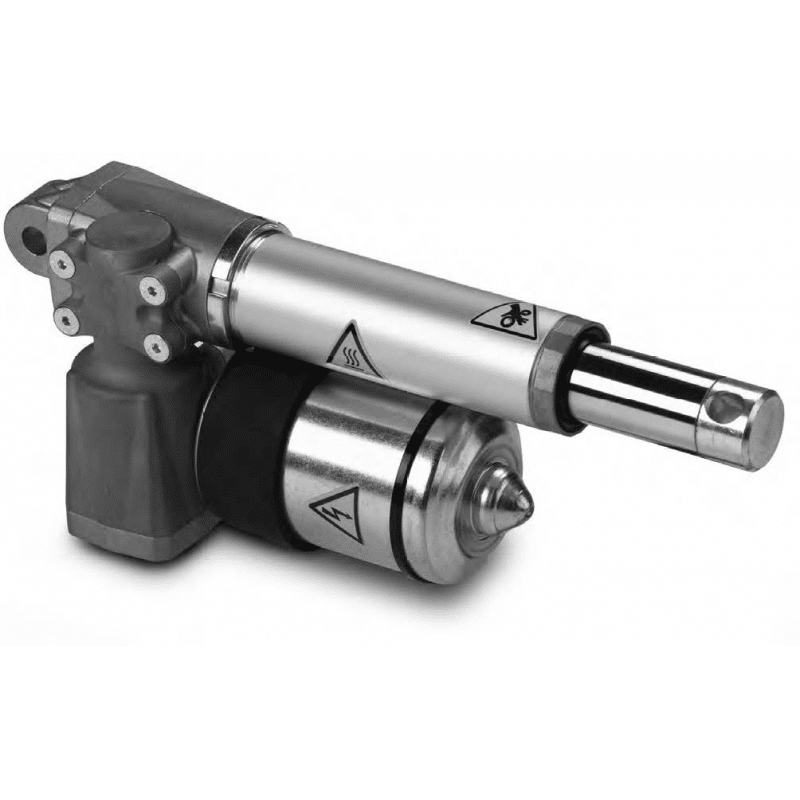

Linearaktuator HGAP-2F
- Force up to 4.200 N
- Feed up to 30 mm/s
- IP65
- Limit switches, encoder integrated
Submit a Non-Binding Inquiry
You can easily reach us via contact form, email, phone, or chat window.
Personalized Consultation
Our experts will assist you in choosing the right product for your applications.
Tailor-Made Solution Offer
We create a customized offer tailored to your specific needs.
We develop special solutions for the realization of your projects
No application is like the other. Together with you, we develop solutions for the optimal realization of your technical challenge. No matter whether a specific drive solution, machined linear guides or spindles, or custom-made gear systems. We support the development from the idea to the implementation with our competence and broad knowledge in the field of linear systems and drive conception.
